BMW 11428092620
Key words:
Product category:

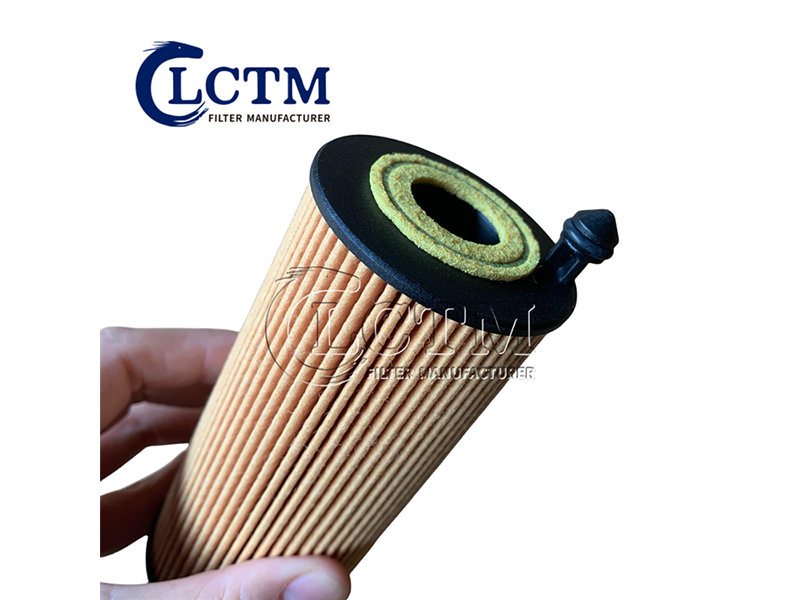

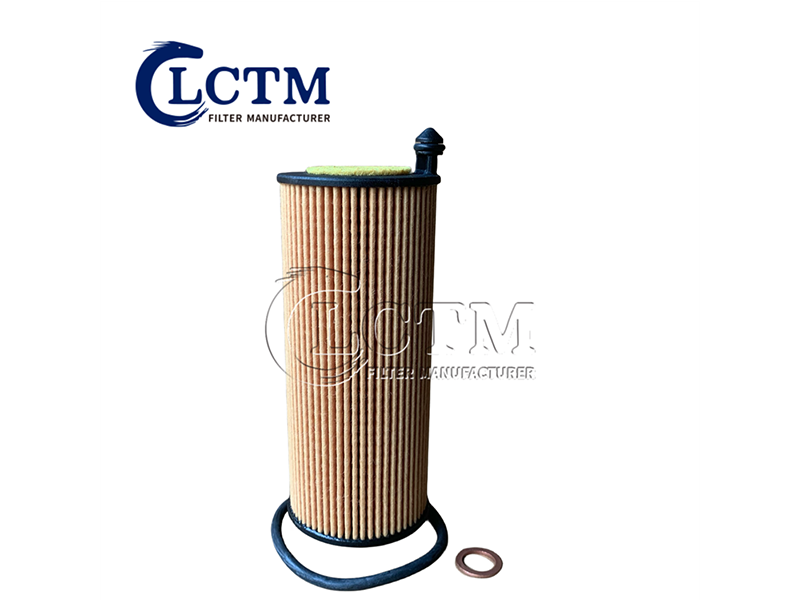

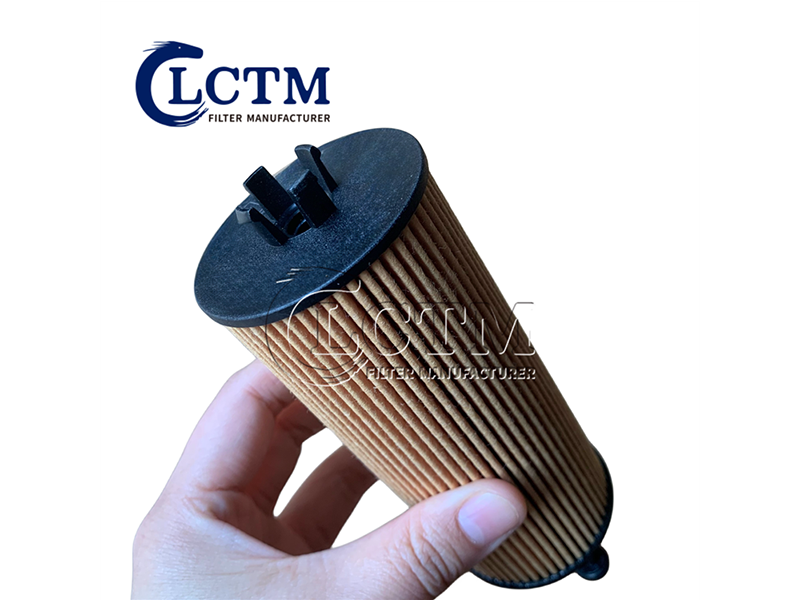

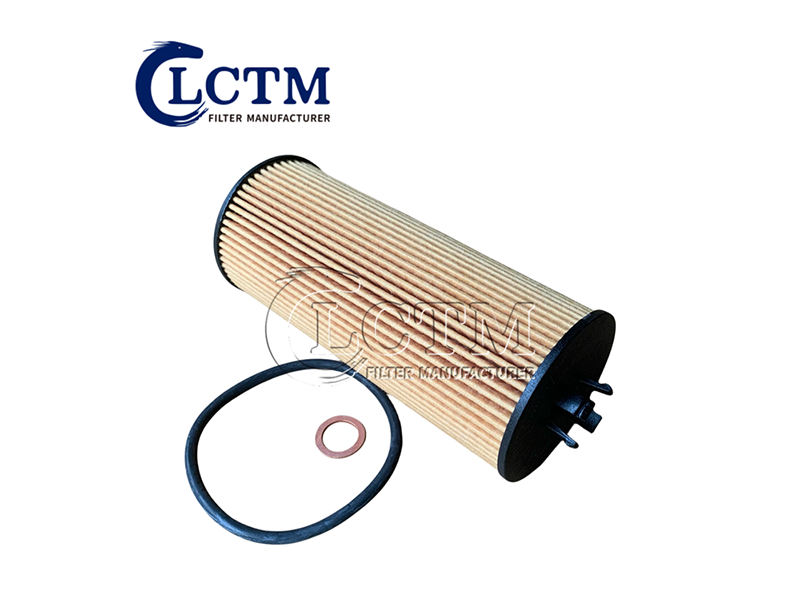

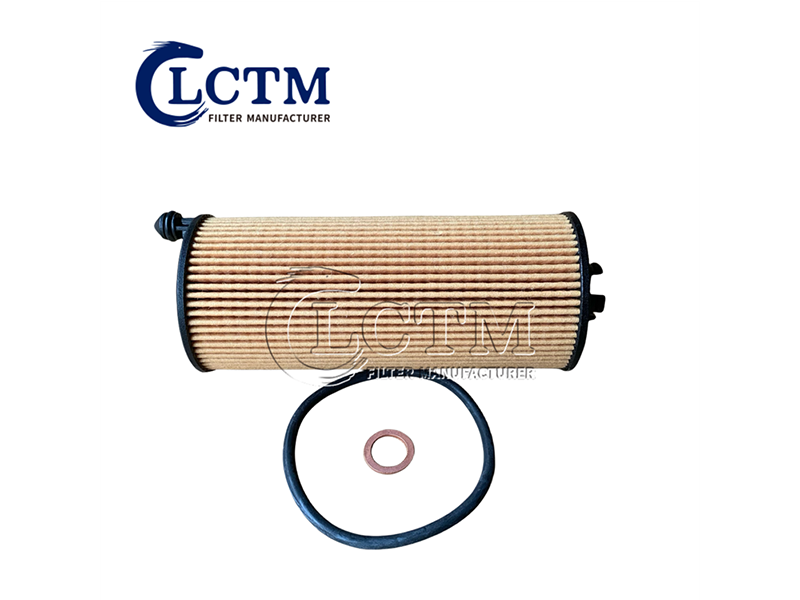

BMW 11428092620
Product Introduction
Oil filter, also known as oil grid. It is used to remove impurities such as dust, metal particles, carbon deposits and soot particles in the engine oil to protect the engine.
The oil filter is divided into full flow type and split flow type. The full-flow filter is connected in series between the oil pump and the main oil passage, so it can filter all the lubricating oil entering the main oil passage. The shunt cleaner is connected in parallel with the main oil passage to filter only part of the lubricating oil sent by the oil pump.
Technical features
● Filter paper: Oil filters have higher requirements for filter paper than air filters, mainly because the temperature of the oil varies from 0 to 300 degrees. Under severe temperature changes, the concentration of the oil also changes accordingly. This will affect the filtration flow of the oil. The filter paper of a high-quality oil filter must be able to filter impurities under severe temperature changes while ensuring sufficient flow.
● Rubber sealing ring: The filter sealing ring of high-quality oil is made of special rubber to ensure that 100% does not leak oil.
● Backflow suppression valve: only available in high-quality oil filters. When the engine is turned off, it can prevent the oil filter from drying out; when the engine is re-ignited, it immediately generates pressure and supplies oil to lubricate the engine. (also called check valve)
● Overflow valve: only available in high-quality oil filters. When the external temperature drops to a certain value or when the oil filter exceeds the normal service life, the overflow valve will open under special pressure, allowing unfiltered oil to flow directly into the engine. In spite of this, the impurities in the oil will enter the engine together, but the damage is much smaller than the damage caused by the absence of oil in the engine. Therefore, the relief valve is the key to protect the engine in an emergency. (Also known as bypass valve)
